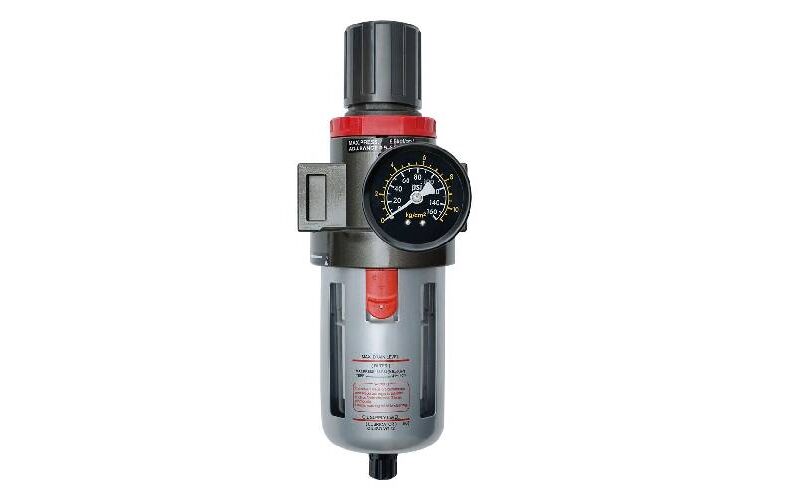

PROWIN FR-4000 1/2″ F/R Air Control Unit
Air tools
It has the functions of pressure regulation and filtration. The density of the filter impurities is about 5μm, and the diameter of the body connection can be up to 1/2. Diversification components, Select Manual drain cock, Different pressure or Auto drain.
☑ Specification
|
Filter Grade
|
5µm |
|---|---|
|
Port Size
|
1/2” PT |
|
Flow Rate
|
3,000 l/min |
|
Pressure Range
|
0.5~8.5 kg/cm2 |
|
Max. pressure
|
9.5 kg/cm2 |
|
Temperture Range
|
5 ~ 60 ℃ |
|
Drain Capacity
|
60 c.c. |
|
Gauge Thread
|
1/4″ PT |
