HR-200K 3/16″ Air Hydraulic Riveter Kit
Air tools
⚙️ Specification
|
Rivet Capacity
|
2.4 ~ 6.4 mm (Steel) / 3/32″ ~ 1/4″ |
|
Traction Power
|
1,894 Kgs (4,166 lbs) |
|
Stroke Length
|
19 mm |
|
Nose Pieces
|
2.4, 3.2, 4.0, 4.8, 6.4 mm |
|
Avg. Air Cons.
|
4.2 CFM (148 l/min) |
|
Air Pressure
|
80 ~ 100 PSI |
|
Net Weight
|
2.0 Kgs (4.3 lbs) |
|
Overall Length
|
L280 × H330 × D102 mm |
|
Air Inlet
|
1/4″ |
|
Air Hose I.D.
|
3/8″ (10 mm) |
|
Packing
|
6pcs/ctn/2.03cu-ft/GW:17kg |
|
Acceptable rivet material
|
aluminum/steel/stainless |

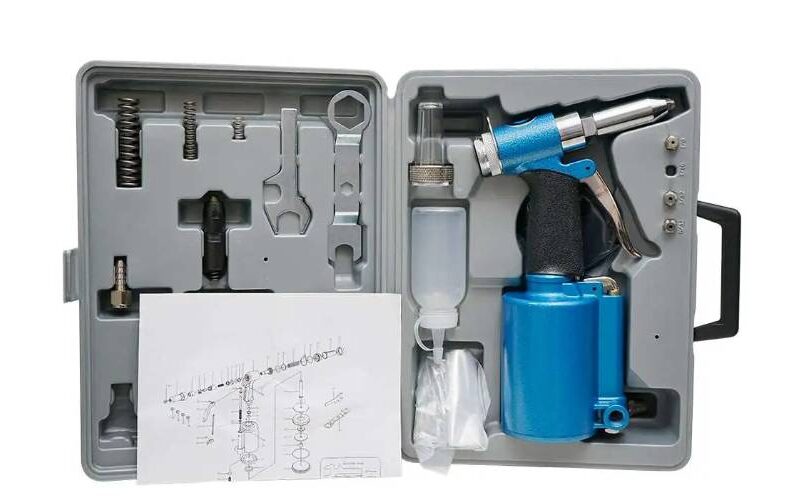

⚙️ Contents
- 1 × HR-200 Air Hydraulic Riveter
- 1 × Oil Pot
- 1 × Air Nipple
- 1 × Wrench
- 1 × Gauge
- 3 × Nose Pieces
- 1 × Turn Up Set
- 1 × Spare Pushing Spring
- 1 × Spare Jaw Set
- 1 × Blow Mold Case
